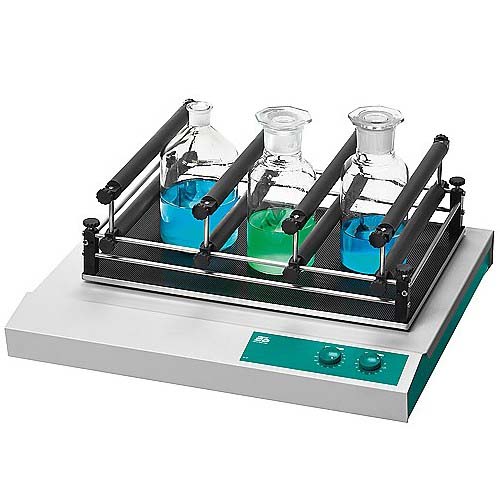

Universal Shaker, SM30A
Description:
Table-top shaker for high loads and continuous operation.
Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
Loading Capacity
Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Separating funnels 250 ml 6 pieces
Separating funnels 1000 ml 4 pieces
Test tube racks 5 pieces
Details:
| Motion |
Orbital |
| Shaking Platform |
560 x 400mm |
| Max. Load |
30kg |
| Shaking Speed |
5-300rpm, straplessly adjustable |
| Storke |
26mm |
| Timer |
0-12 min/continuous |
| Order No. |
6101 000 (with shaking plate
without rack system |
| Accessory |
Rack system combifix SM A
Rack system combifix SM B
Rack system combifix SM C
Universal tray SM
2-storey top frame SM
Incubator Hood TH30 |
Technical specifications:
| Electrical supply |
230V or 115V. 50/60Hz
주문시 전원을 꼭 선택해 주세요. |
| Enclosure protection |
IP21 |
| Heat emission |
approx. 20W |
| Ambient temperature |
5°C to 50°C |
| Relative humidity |
~85% |
| Dimension (wxdxh) |
680 x 610 x 160mm |
| Weight |
33kg |
Rack system combifix:
|
Rack System Combifix
SM A (Order No.0050 154)
|
Rack System Combifix
SM B (Order No.0050 155)
|
Rack System Combifix
SM C (Order No. 0050 156)
|
 |
 |
 |
SM A (0050 154)--Basic rack with 5 clamping strips h. For fastening different upright vessels.
With additional strips also suitable for other vessels.
SM B (0050 155)--Basic rack with 4 clamping strips h and 4 clamping strips v. For fastening horizontal
vessels between the clamping strips, or as added support for high vessels.
The maximum distance between the strips h and v is 60 mm. With additional strips
also suitable for other vessels
SM C (0050 156)--Rack system with 2 clamping strips h, 2 cramp strips and 1 spring strip.
For fastening separating funnels.
Standard version of cramp strip: 5 clamps NS 19 (D20) and 2 clamps NS 29 (D32).
With additional strips also suitable for other vessels.
Accessory;---Clamping Strip for SM
|
Clamping Strip H
(Order No. 0050 400)
|
Clamping Strip V
(Order No. 0050 399)
|
 |
 |
Clamping Strip H (0050 400): Holder with sponge rubber cover for fastening upright vessels.
Clamping Strip V (0050 399): Holder with sponge rubber cover in combination with clamping strip h.
For fastening horizontal or high vessels.
Accessory;---Clamp Strip & Spring Strip
|
Clamp Strip
(Order No. 0050 401)
|
Spring Strip
(Order No. 0050 402)
|
 |
 |
Clamp Strip (0050 401): Cramp strip with 5 clamps NS 19 (D20) and 2 clamps NS 29 (D32).
For fastening horizontal separating funnels.
Spring Strip (0050 402): For securing the stoppers of separating funnels or other horizontal vessels.
