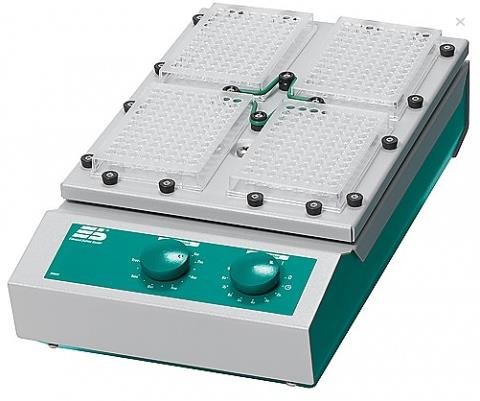

Miniature Shaker TiMix 2
Description:
Special shaker for small samples in microplates
Basic Equipment
Basic device incl. basic platform with holders for 4 microplates
Loading Capacity
4 microplates
deepwell-plates, or other plates in microplate format
Details
| Motion |
exact orbital motion |
| Shaking platform |
200 x 295 mm for 4 microplates |
| Max. load |
2 kg |
| Shaking speed |
100 - 1400 min-1, steplessly adjustable |
| Stroke |
3 mm |
| Timer |
0 - 120 min/continuous |
| Order No. |
6110 000 |
| Accessory |
Shaking platform KM
Clamping strip KM |
Technical specifications
| Electrical supply |
230 V or 115 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection |
IP 21 |
| Heat emission |
approx. 15 W |
| Ambient temperature |
5°C to 50°C |
| Relative humidity |
~ 85 % |
| Dimensions (w x d x h) |
220 x 410 x 110 mm |
| Weight |
8.5 kg |
Accessory
Shaking platform KM
200 x 295 mm
(Order No.0052 072) |
Clamping strip KM
(Order No.0052 115) |
 |
 |
Shaking platform KM (0052 072)-- For shaker TiMix 2 (instead of standard platform). Flat shaking platform with rim (20 mm) and rubber mat.
Clamping strip KM (0052 115)-- Holder with sponge rubber cover for fastening upright vessels.
* 상기 제품은 수입 견적의뢰 제품입니다. 언제든지 문의해 주시면 성심 성의껏 답변해 드리겠습니다.
