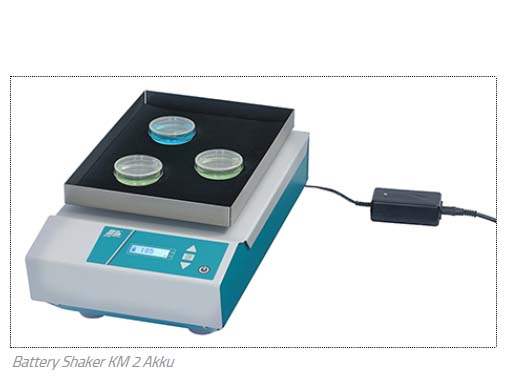

Battery Shaker KM2 (No. 6135 000)
Description:
Well suited for operation in refrigerators or incubators
Basic Equipment
Basic device incl. basic platform and rubber mat, mains / charger unit
Loading Capacity
Erlenmeyer flasks 10 ml 20 pieces
Erlenmeyer flasks 50 ml 12 pieces
Technical Data
Motion: orbital
Shaking platform: 200 x 295 mm
Max. load: 2 kg
Shaking speed: 5-220 rpm, in steps of 5
Stroke: 20mm
Charging time (battery): 10 hours
Runtime: 0 - 99h 59 min/continuous
Order No.: 6135 000
Electrical supply: 100-240V, 50/60 Hz
Internal electrical supply: 1 battery 12V / 7 Ah
Enclosure protection: IP 21
Power consumption: max. 12w
Heat emission: approx.. 0.5 - 2 W
Ambient temperature: 4°C to 45°C
Relative humidity: ~ 95%(non-condensing)
Dimensions (w x d x h): 250 x 415 x 145 mm
Weight: 10.5 kg
Accessory:
|
Universal tray KM Mini
Shaking platform: 200 x 295 mm
(Order No.0052 119)
|
Universal tray KM
Shaking platform: 356 x 300 mm
(Order No.0052 030)
|
Clamping strip KM
(Order No. 0052 115)
|
|
|
|
|
Universal tray KM Mini (0052 119)-- Coated tray with drillings for individual loading with spring clamps or test tube racks.
For fastening test tube racks on a universal tray test tube rack and hinged foot are necessary.
Universal stip KM (0052 030)-- Coated tray with drillings for individual loading with spring clamps or test tube racks.
Clamping strip KM (0052 115)--Holder with sponge rubber cover for fastening upright vessels.
Accessories for Universal tray KM Min
|
Spring clamps
10 ml
(Order No. 0009 642)
|
Spring clamps
25 ml
(Order No. 0009 643)
|
Spring clamps
50 ml
(Order No. 0009 644)
|
Spring clamps
100 ml
(Order No. 0009 645)
|
|
|
|
|
|
|
Spring clamps
250 ml
(Order No. 0009 646)
|
Spring clamps
500 ml
(Order No. 0009 647)
|
Spring clamps
1000 ml
(Order No. 0009 648)
|
Spring clamps
2000 ml
(Order No. 0009 649)
|
|
|
|
|
|
Spring clamps: For universal trays. The sizes are related to Erlenmeyer flasks,
but are also suitable for round-bottom flasks, beakers, etc.
|
Test tube rack w/
68 drillings à 14 mm Ø
(Order No. 0052 056)
|
Test tube rack w/
44 drillings à 16 mm Ø
(Order No. 0052 057)
|
Test tube rack w/
44 drillings à 18 mm Ø
(Order No. 0052 058)
|
Test tube rack w/
14 drillings à 30 mm Ø
(Order No. 0052 201)
|
|
|
|
|
|
To be fastened either with clamping strips on rack systems or with a hinged foot on universal trays.
With the hinged foot it is possible to vary the angle of inclination of the test tubes.
Dimensions: 289 x 100 mm.
|
Hinged foot for test tube racks
(Order No. 0052 059)
|
|
|
Hinged foot for test tube racks: Required for universal trays. Size fitting for all test tube racks.
|
Holder for 1 microplate
(Order No. 0052 053)
|
|
|
For fastening microplates on universal trays. The microplate is tilted by approx. 20°.
